Product Details:
|
|
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | wisdom |
| Model Number: | XLFD108-2 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500 Kilograms |
| Price: | $3.69/Kilograms 500-10999 Kilograms |
| Packaging Details: | pearl cotton+paper box |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Grade: | 6000 Series | Temper: | T5 / T6 |
|---|---|---|---|
| Application: | Door&window | Shape: | Square |
| Alloy Or Not: | Is Alloy | Tolerance: | ±1% |
| Processing Service: | Bending, Decoiling, Welding, Punching, Cutting | Delivery Time: | 20days |
| Performance: | Energy Conservation | Color: | Gray |
| Product Name: | Aluminum Extrusion Profile | Type: | Aluninum Extrusion |
| Name: | Aluminum Profile For Window | Size: | Customer's Requst |
| OEM Service: | Products: | Alluminium Profile | |
| PortStandard: | GB/75237-2004, Q320281/PDWD-2008 | ||
| High Light: | Q320281 Aluminium Window Profiles,Q320281 Door Frame Extrusion,T6 Aluminium Window Profiles |
||
Product Description

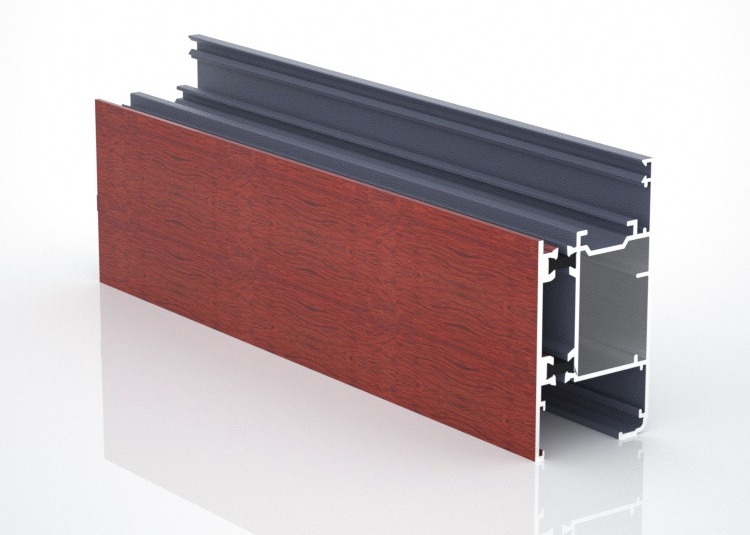

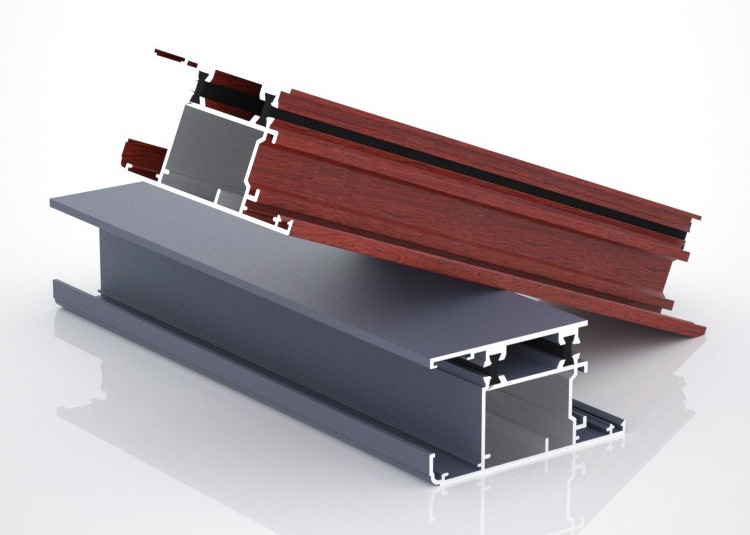

Q320281 Aluminium Window Profiles Door Frame Extrusion For Hotel Villa
Aluminium Window Profiles Best Quality T3 6063 Customize Extrusion window Aluminum Profiles door frame for hotel villa
Description:
High Quality Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window With Gold Wooden Color
|
Features |
1. Water-proof & Air-proof |
|
2. Anti-aging |
|
|
3. Space Saving |
|
|
4. Sound Insulation & Heat Insulation |
|
|
5. Opening Smoothly |
|
|
6. Dust resistance |
|
|
7. Easy maintenance |
|
|
8.Good Combustion-retarding Performance |
|
|
Material |
series:45mm |
|
Thickness: 1.4mm |
|
|
Surface Treatment: Powdercoated/Anodized/Electrophoresis/PVDF, etc. |
|
|
Color: Customized (Silver/Champagne/White/Black, etc.) |
|
|
Glass |
Type: LOW-E/Reflective/Tempered/Heat-strengthened/Floated |
|
Glazed: Single Glazing Double / Triple Glazing: Insulated Glass, Laminated Glass |
|
|
Color: Customizable(Clear/Grey/Blue/Brown/Green, etc.) |
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Corporate Introdiction:
Foshan Dolphin Metal Products Co., LTD is located in Foshan Guangdong. We have been engaged in foreign trade for more than 10 years. The company has two factories in China and one in Vietnam. We provide various high-standing T5&T6 6000 series aluminum profile for doors&windows, conservatory, cabinet&wardrobe, building material and etc. With professional R&D, OEM/ODM are available. Our monthly output reaches more than 8000 Tons, so our customers come from different countries, such as Thailand, Malaysia, Singapore, Vietnam, Burma and etc.
Moreover, the company has a professional and responsible team to help our customers. All processes are visualized during thr order. Before loading, we have quality inspectors to check the products. After the order, the aftersales staff will ask for feedback. We have always been
adhering to the concept that customers are friends and teachers. Every feedback is a opportunity to learn and grow. With the development of these years, Dolphin Co., LTD will be further upgraded and expanded.
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
Welcome to visit our company !
Choose us & contact us !
