Detail Information
Product Description

Detail Information
Material:	6063 Aluminum Alloy	Temper:	T3-T8
Shape:	Customized,t Shape,thermal Barrier,rectangle,flat,square,etc	Color:	Shiny Grey,white,black,cream,beige,brown
Application:	Aluminum Window Frame System	Surface Treatment:	Powder Coated,shiny Powder Coated,high Glossy Powder Coated,etc
Processing Service:	Bending, Decoiling, Welding, Punching, Cutting
High Light:	2.7g/Cm3 Casement Window Profile , T3 Casement Window Profile , T3 Door Frame Extrusion

Product Description

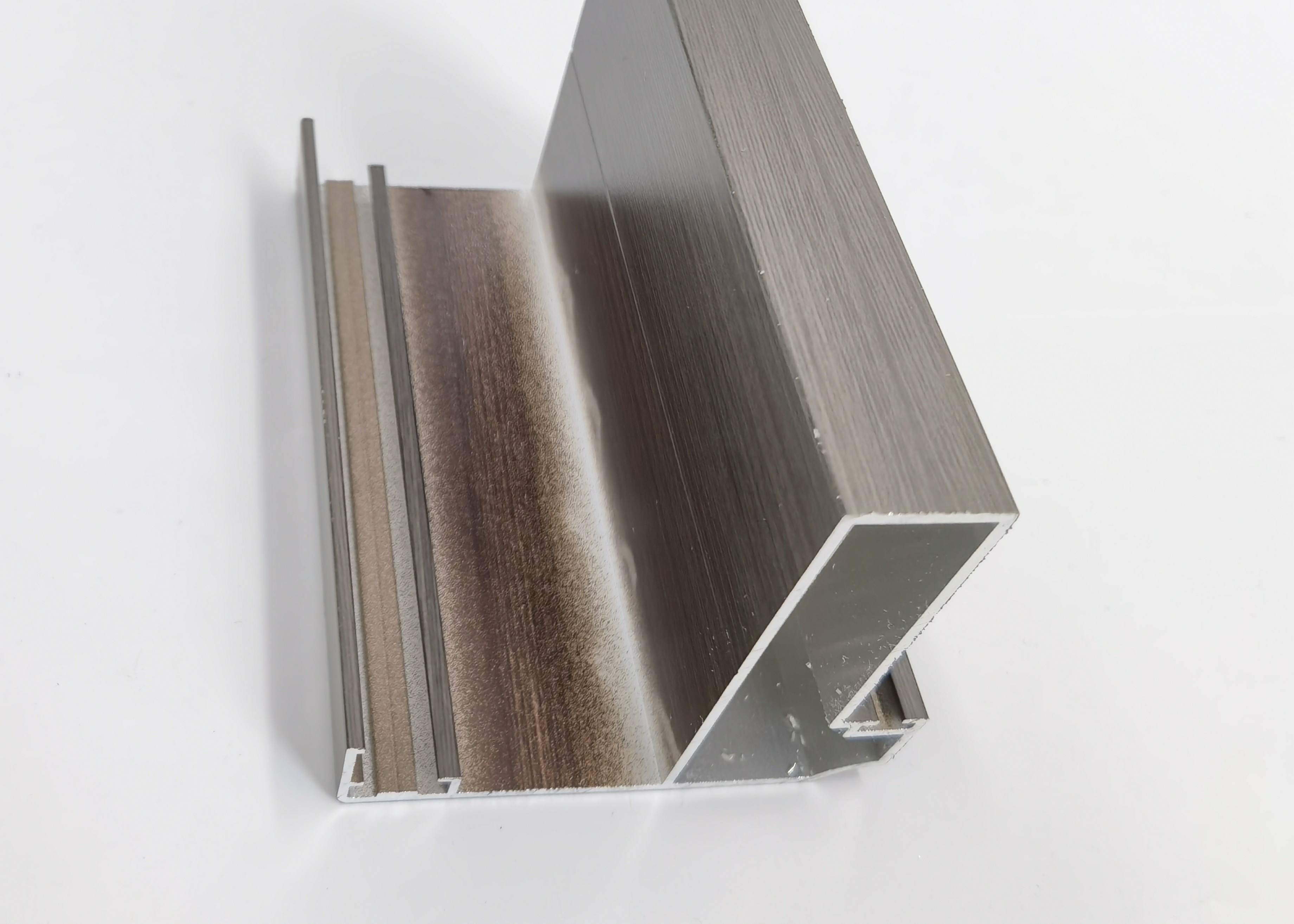

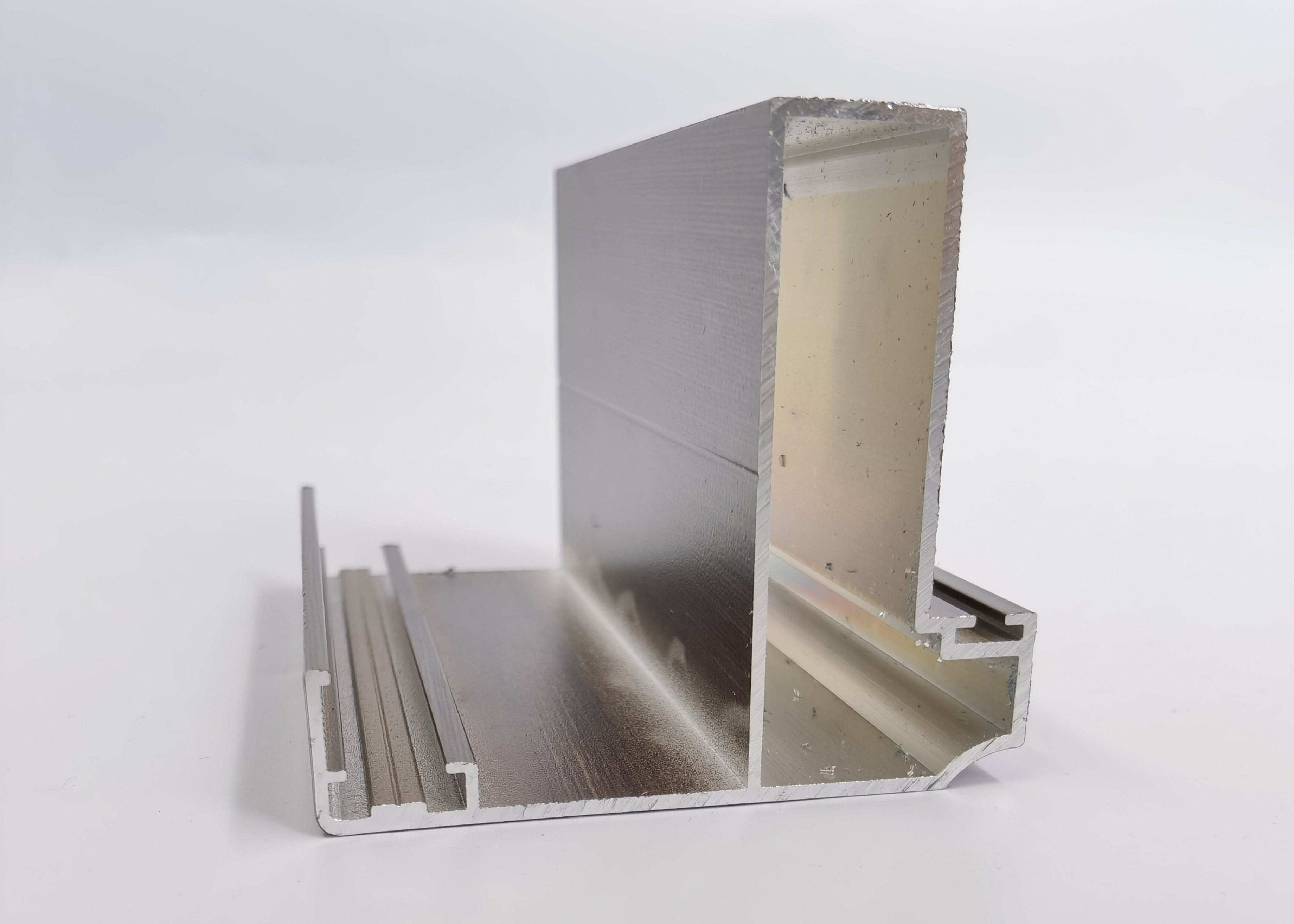

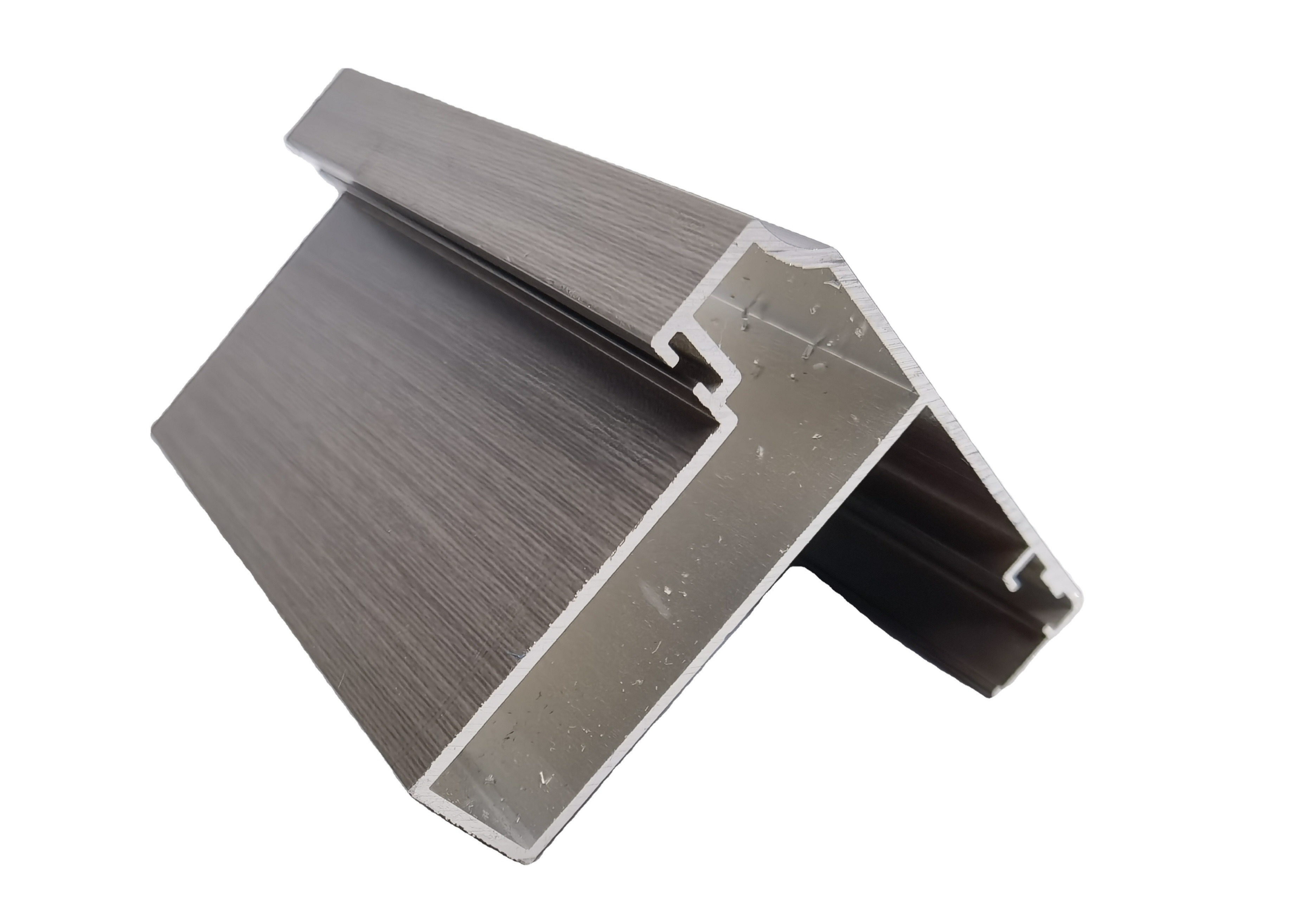

2.7g/Cm3 Casement Window Profile Durable Door Frame Extrusion

Casement Window Profile durable Door frame Big coffee cover decorative aluminum profiles for indoor

Profile Specification:

Description	6063 Shiny Grey Powder Coated Aluminium Extrusions For Building Decoration Materials Window Frame
Material Thickness(t)	0.8-2.0 mm
Materiral	aluminum alloy 6063
Annealing Treatment	T3-T8
Color	grey,white,black,cream,beige,brown,etc
Surface Treatment	powder coated,shiny powder coated,high glossy powder coated,etc
Shape	Square, Round, Flat, Oval, and according to customer's drawing.
Length	Normal length=6m or in customer's order
Usage	Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.
Package	1. Pearl cotton foam for each profile; 2. Wrap with shrink film exterior; 3. Packed according to customer request.
Advantages/Features	Providing colorful products with various mechanical performances to adapt all kinds of architectural styles

Aluminium Profiles Advantages:

Corrosion resistance

The density of aluminum profile is only 2.7g/cm3, about 1 / 3 of that of steel, copper or brass (7.83g/cm3 and 8.93g/cm3 respectively). Aluminum exhibits excellent corrosion resistance under most environmental conditions, including in air, water (or brine), petrochemicals, and many chemical systems.

Conductivity

Aluminum profile is often selected because of its excellent conductivity. On the basis of equal weight, the conductivity of aluminum is nearly 1 / 2 of that of copper.

Thermal conductivity

The thermal conductivity of aluminum alloy is about 50-60% of that of copper, which is beneficial to the manufacture of heat exchangers, evaporators, heating appliances, cooking utensils, cylinder heads and radiators of automobiles.

Non ferromagnetism

Aluminum profiles are non ferromagnetic, which is an important feature for the electrical and electronic industries. Aluminum profiles are not self ignited, which is important for applications involving handling or contacting flammable and explosive materials.

Processability

The machinability of aluminum profile is excellent. In all kinds of wrought and cast aluminum alloys, as well as in the various states after the production of these alloys, the machining characteristics change greatly, which requires special machine tools or technologies.

Formability

Specific tensile strength, yield strength, ductility and corresponding work hardening rate control the variation of allowable deformation.

Recyclability

Aluminum is highly recyclable, and the properties of recycled aluminum are almost the same as that of primary aluminum.

Aluminum Profile Powder Spraying Introduction:

For aluminum profiles, it is necessary to carry out surface spraying. There are three main spraying methods:

1. Fluorocarbon spraying of Ω rotating disc for aluminum profile: firstly, the workpiece mode is put on the production line, and then the preliminary treatment is carried out, until the Ω rotary disc is used for automatic electrostatic spraying primer, and then the primer is leveled, and then the Ω rotary disc is used for automatic electrostatic spraying of the top coat, and then the finishing coat is applied to the automatic electrostatic spraying finishing paint, and then the leveling cover is applied Finish, then dry and cool naturally until the workpiece is removed from the production line.

2. Vertical electrostatic spraying of aluminum profile matrix: firstly, the workpiece is placed on the production line for preliminary treatment, and then the primer is sprayed with Ω rotary disc, and then the primer is leveled. Then, the top coat is sprayed by electrostatic spray gun automatically, and then the plane paint is flowed. Then, the finishing paint is sprayed automatically by the electrostatic spray gun, and then the finishing paint is dried and natural after the finishing paint is leveled Cool down until the workpiece is removed from the production line.

3. Aluminum profile electrostatic spraying gun fluorocarbon spraying: first, the workpiece is placed on the production line, and then the preliminary treatment is carried out to obtain the automatic electrostatic spraying primer, and the electrostatic spraying gun or rotating cup is used for spraying. Then wait for the primer to be leveled, spray paint on the self-contained electrostatic spraying surface, and then use the electrostatic spray gun to carry out the top coat leveling, and then use the electrostatic spray gun to automatically spray the finishing paint. Wait until the finishing paint is leveled, turned into a solid state, and cooled naturally, until the workpiece is removed from the production line.
