Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Dolphin |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | pearl cotton+paper box,6 meters long |
| Delivery Time: | 15-21 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Temper: | Polished Aluminium Tube | Annealing Treatment: | T4, T5, T52, T6, Etc |
|---|---|---|---|
| Material: | CA ,CE | Thinckness: | 1.0/1.1/1.2/1.4 |
| Packaging Details: | EP Paper ,kraft And Pallet | Length: | Based On Demand |
| High Light: | 6061 Aluminum Kitchen Profile,1.4mm Aluminum Kitchen Profile,6063 polished aluminium tube |
||
Product Description

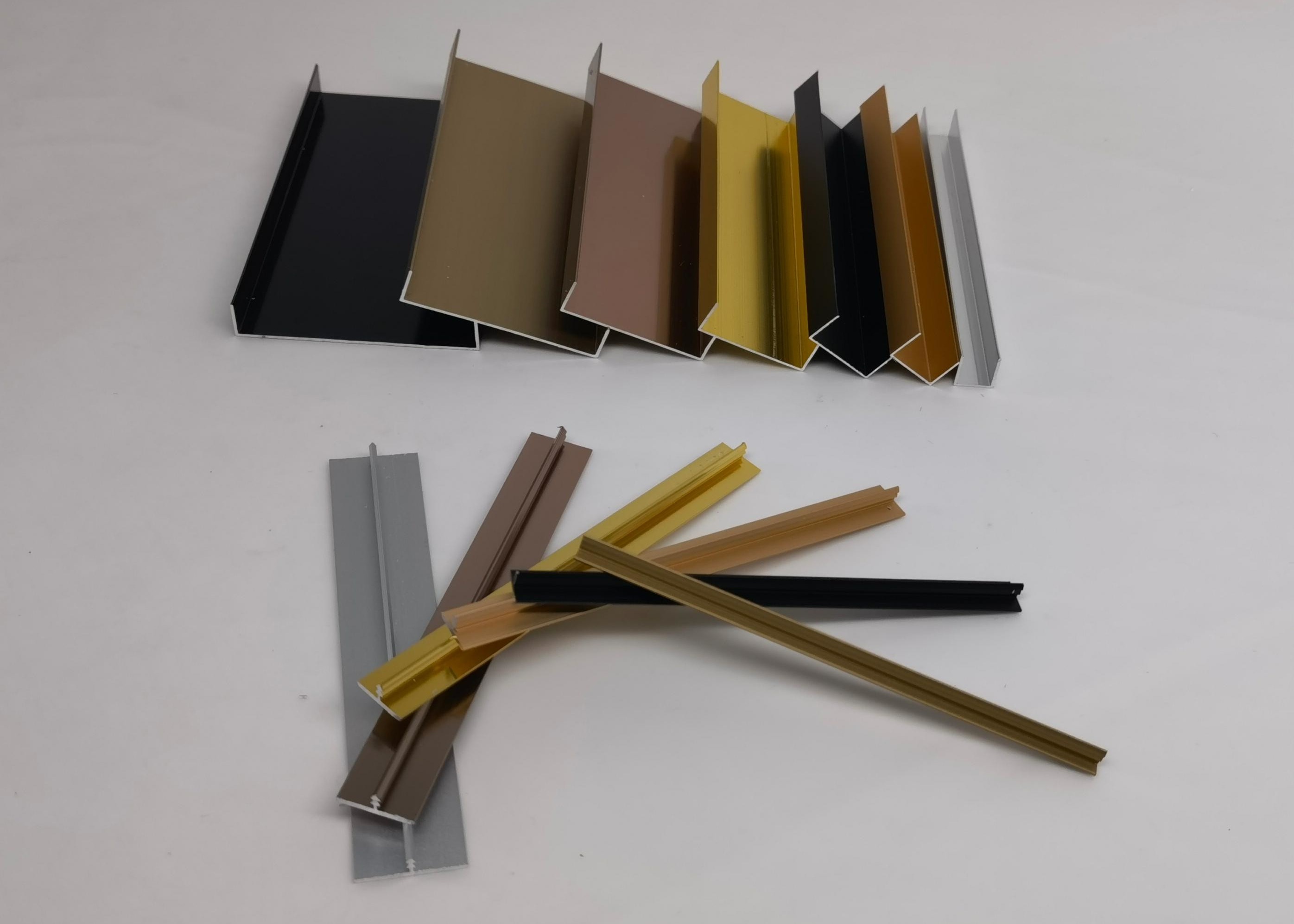

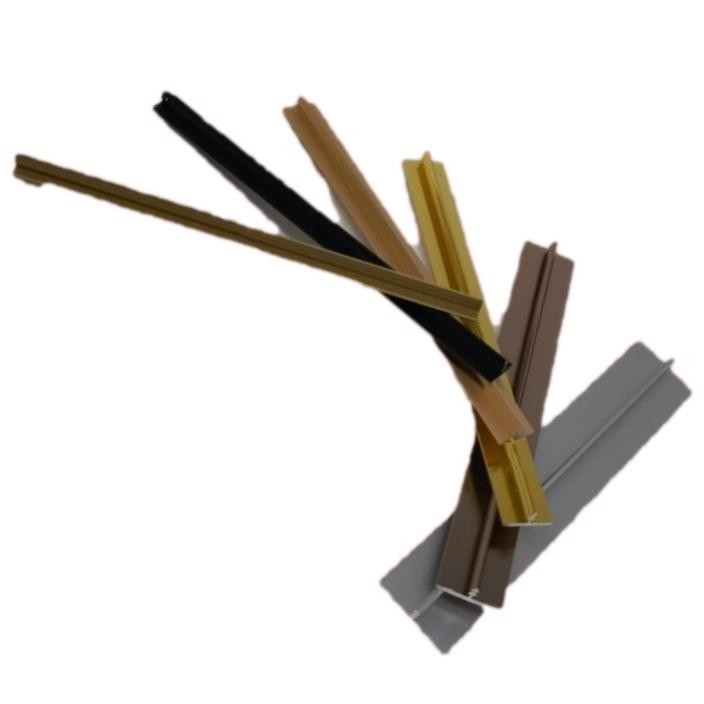

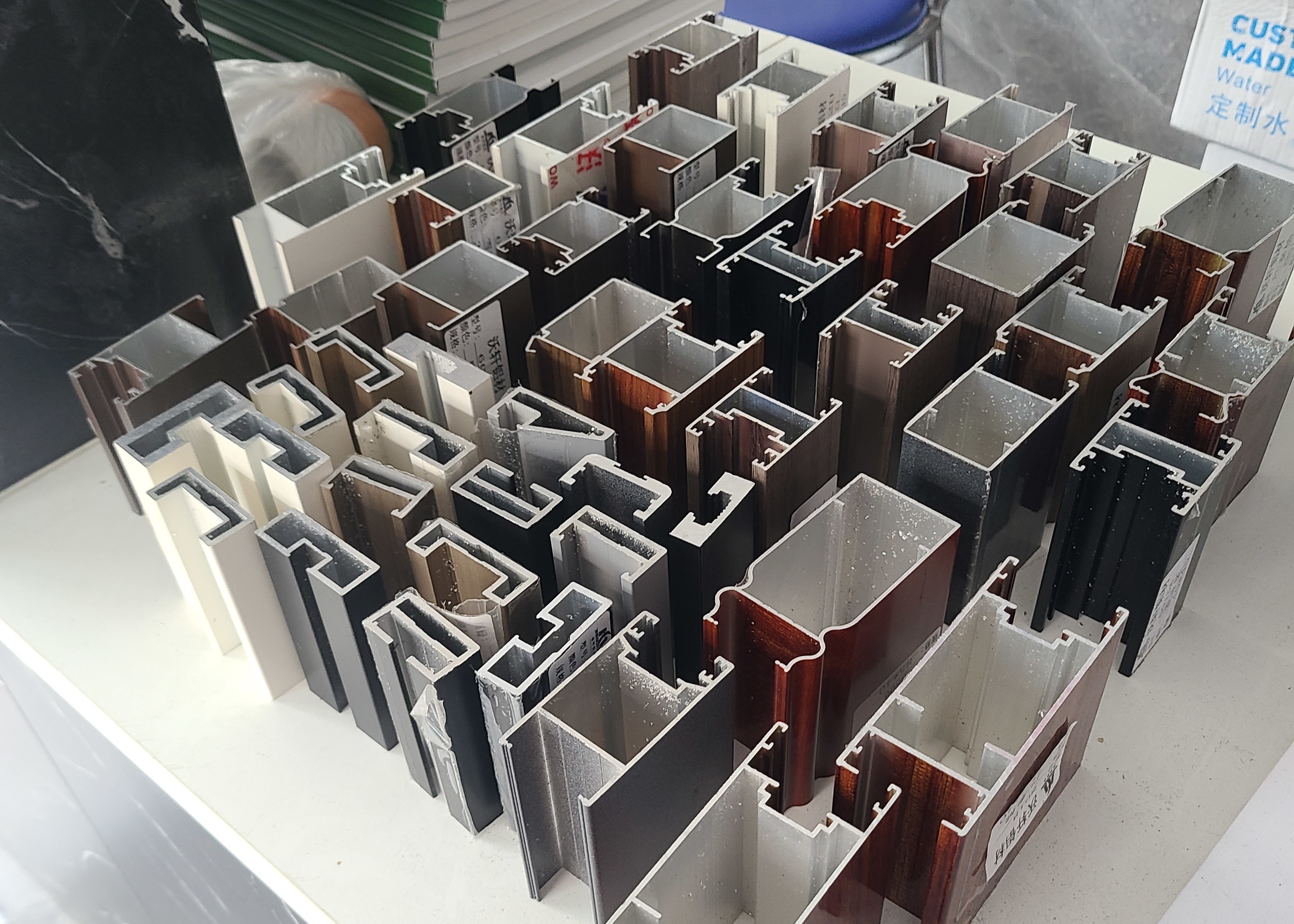

High Hardness 6063 6061 Aluminum Kitchen Profile Square Shape Anti Oxidation
1. Temper: T4, T5, T6 ,T66
2. Material:Aluminum
3. Alloy :6063,6061,6005 or according to customer’ s choice
4. Deep process: Milling, Drilling, Bending,Cutting.
5. Application:
Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.
6. Color:clear, satin, bronze, black, golden, silver, other multicolor
7. Suface Treatment: Mill Finished,Anodized,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steelpolished,Wood grain coated /Wooden transfer .
Description:
The surface treatment :
1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.
4) Powder spray coated Normal color, special color. Thickness: 60 to 80 um.
5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Applications:
Sliding aluminum windows, also called aluminum sliding windows, are widely used as sliding closet windows, sliding cabinet windows, sliding bathroom windows, exterior sliding windows and sliding aluminum folding windows, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.
Specifications:
1. Primary Technical Data
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
