Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Dolphin |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | pearl cotton+paper box,6 meters long |
| Delivery Time: | 15-21 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Material: | Alloy Aluminium | Usage: | Used For Decoration And Fixing |
|---|---|---|---|
| Thickness: | Minimum 0.3, Maximum 5.0mm, Customizable | Size: | Any Shape Can Be Customized |
| Type: | Cover | Wall Thickness: | Min In 0.8mm,2mm |
| High Light: | High Hardness Aluminium Profile Cover,5.0mm Aluminium Profile Cover,5.0mm Extruded Aluminum Profiles |
||
Product Description

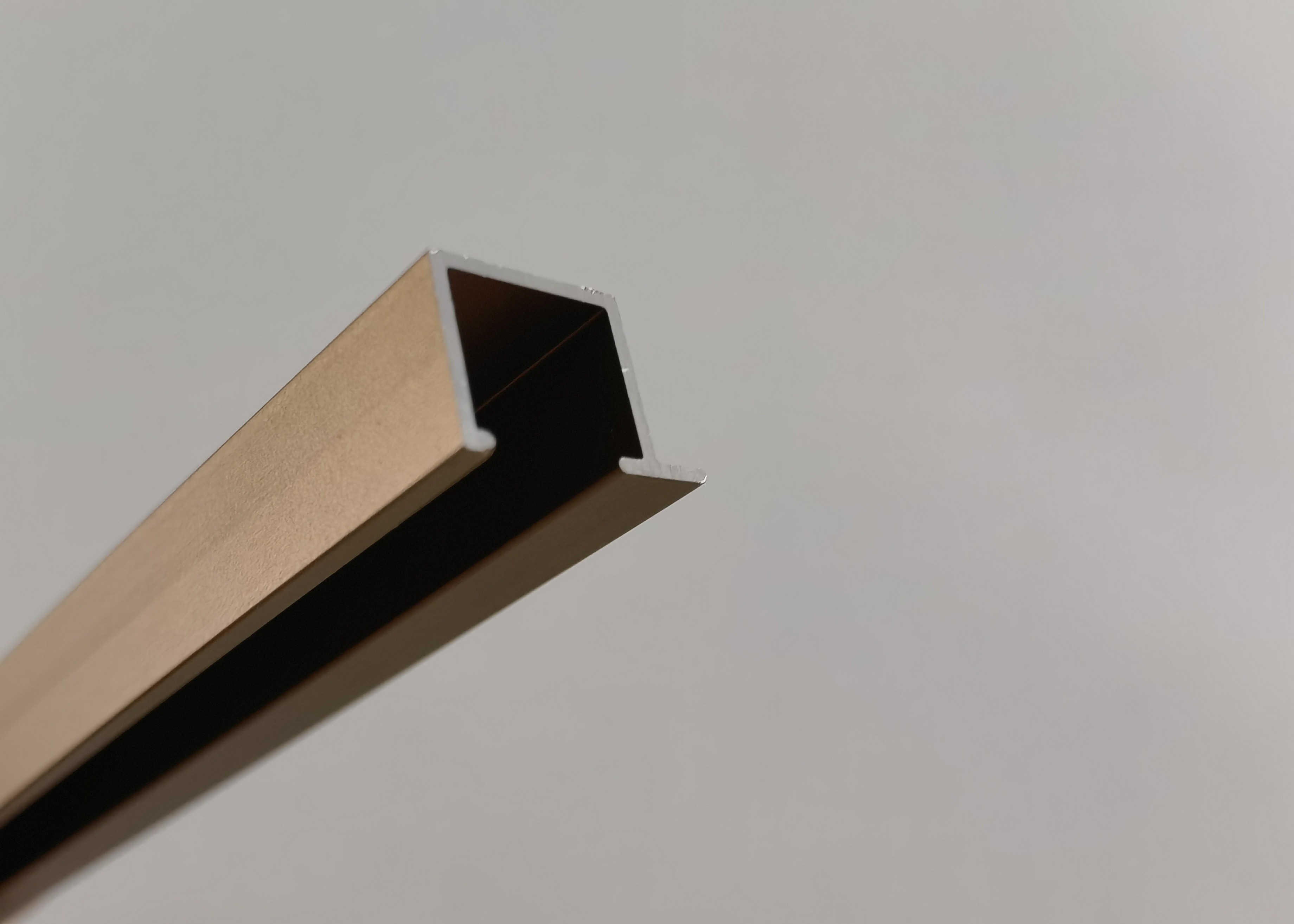

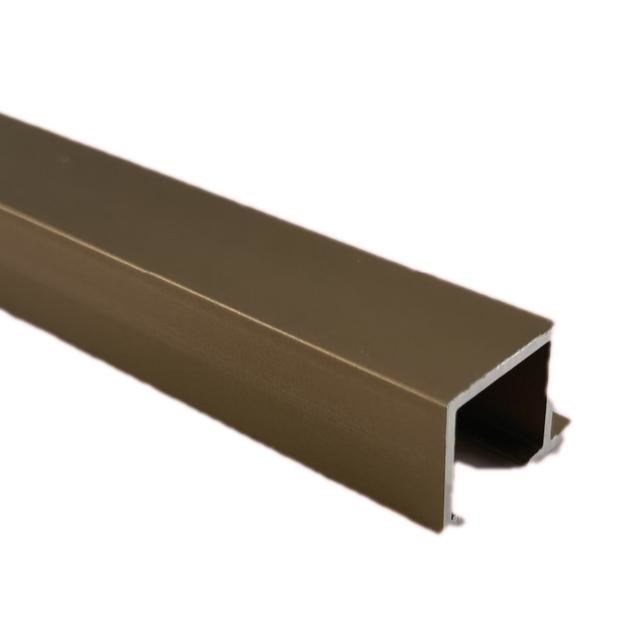

High Hardness Aluminium Profile Cover For Glass Doors Rectangle Shape
Varieties Of Colors On The Surface Of The Substrate , Strong Hardness , Customize
1. Description: Aluminum/Aluminium Industry profile for elevator
2. Alloy temper: 6063-T6; 6061-T6 ; 6082-T6
3. Standard: EN755, ASTMB221, DIN Standard
4. Surface treatment: Mill finish; Anodizing; Powder coated, Brushed.
5. Application: Industrial equipment
6. Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Hard alloy longer life span
6) Packing safety and convenient.
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
