Product Description

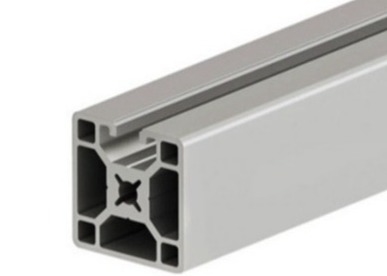

ODM 4040 Aluminum Extruded Profile No Slots On Three Sides Framework

Aluminum Extruded Profile 4040 No Slots On Three Sides Framework Profile

40*40-1N Aluminium Extrusion T-Slot Profile

Specifiaction of Profile:

Specification:

Code: S8-40×40-1N
Slot Width: 8.2 mm
Weight: 1.86 kg/m
Mass of Inertia: lx: 9.47 cm4 ly: 9.40 cm4
Section Modulus: zx: 4.67 cm3 zy: 4.65 cm3

Summary:

Order No: HY-S8-4040-1N, T-slot height: 12.3 mm, Section size: 40 mm × 40 mm, Hole: φ6.8 mm, Thickness of diagonal bar: 2.0 mm. Wall thickness: 1.8 mm.

One side of 4040-1N profile has slot, and other three sides are closed. Wall thickness is about 2.0 mm, it’s one of hot-sale products in domestic because that it could meet most requirements of the framework’s bearing force and tension, and the price is very affordable. Meanwhile, as there are no slots on three sides, the framework has the beautiful appearance.

Matching accessories: 4040-1N profile usually selects the combination of M8 T-bolt & flange nut, and core screw & T-nut, in order to realize the internal connections.

Industrial Aluminum Profiles Types:

General industrial aluminum profiles: mainly used for industrial production and manufacturing, such as automation machinery and equipment, the framework of sealing cover and the customized mold opening of various companies according to their own mechanical equipment requirements, such as assembly line conveyor belt, elevator, dispensing machine, detection equipment, shelf, etc., the electronic machinery industry and dust-free room are mostly used.

4. Aluminum alloy profile for railway vehicle structure: mainly used for manufacturing rail vehicle body.

5. Mounting aluminum profiles, making aluminum alloy frame, mounting various exhibitions, decorative paintings.

Features of aluminum profile: after surface oxidation, it has beautiful appearance and dirt resistance. Once smeared with oil, it is easy to clean, install and dismantle, light and convenient to carry and move. Moreover, the equipment and mechanical equipment manufacturing industry and durable consumer goods account for about 10% and 12% of China's aluminum profile applications respectively. However, in Europe, North America and Japan, the proportion of industrial consumption of aluminum profiles in the same period is 60%, 55% and 40%, which is much higher than that in China. It is expected that the consumption of industrial aluminum profiles in China will continue to grow in the next 5-10 years

Competitive Advantage:

1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good after-sale service.
