45 Degree 6063 T Slot Aluminium Extrusion Profile Arc Two Opposite Sides

Product Description

45 Degree 6063 T Slot Aluminium Extrusion Profile Arc Two Opposite Sides

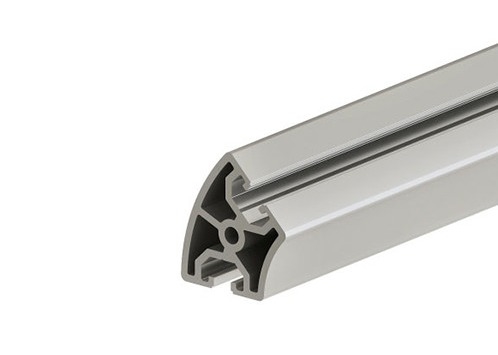

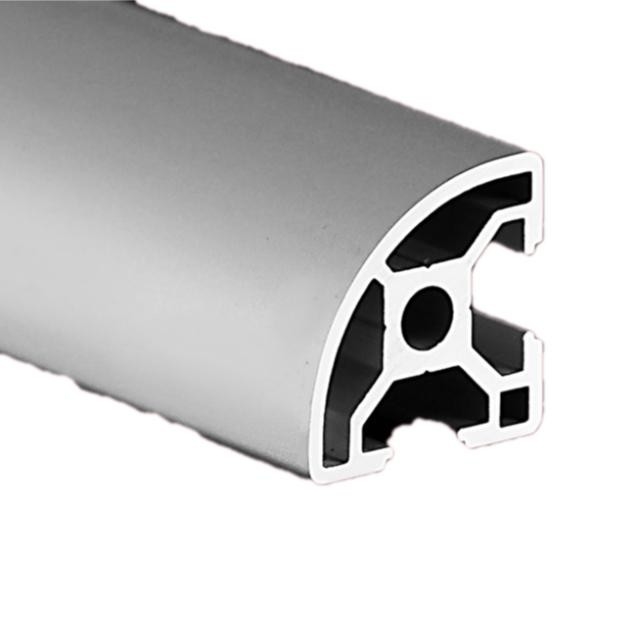

40*40-45° Aluminium Extrusion T-Slot Profile

Specifiaction of Profile:

Specification:

Code: S8-40×40-45°
Slot Width: 8.2 mm
Weight: 2.42 kg/m
Mass of Inertia: lx: 18.38 cm4 ly: 12.72 cm4
Section Modulus: zx: 9.12 cm3 zy: 5.67 cm3

Summary:

Order No: HY-S8- 40×40-45°, T-slot height: 12.3 mm, Section size: 40 mm × 40 mm, Radian: 45°, Hole: φ6.8 mm, Thickness of diagonal bar: 2.0 mm. Wall thickness: 2.0 mm.

4040-45° profile is 45° arc, two opposite sides have slots, and others are closed. Wall thicknesses are more than 2.0 mm; the profile used in a variety of workbenches, operating platform, and working table or like that as an angle playing the connection role.

Characteristics:

The density of aluminum profile is only 2.7g/cm3, about one third of that of steel, copper or brass (7.83g/cm3, 8.93g/cm3). Aluminum exhibits excellent corrosion resistance under most environmental conditions, including air, water (or brine), petrochemicals, and many chemical systems.

Conductivity

Aluminum profile is often selected because of its excellent conductivity. Aluminum is almost twice as conductive as copper by weight.

Rate thermal conductivity

The thermal conductivity of aluminum alloy is about 50-60% of that of copper. It is used to manufacture heat exchangers, evaporators, heating appliances, cooking utensils, cylinder heads and radiators for automobiles.

Ferromagnetic

Aluminum profiles are non ferromagnetic, which is an important feature of the electrical and electronic industries. Aluminum profiles do not self ignite, which is very important for applications involving handling or contacting flammable and explosive materials.

Machinability of can making machine

The processing performance of aluminum profile is excellent. In the process of deformation and casting of aluminum alloy, as well as in various states after the output of aluminum alloy, the processing characteristics change greatly, which requires a special machine tool or process.

Formability

Specific tensile strength, yield strength, ductility and corresponding work hardening rate determine the variation of allowable deformation.

Circularity

Aluminum is very recyclable, and the performance of recycled aluminum is almost indistinguishable from that of natural aluminum.

Corporate Introduction:

Foshan Dolphin Metal Products Co., LTD is located in Foshan Guangdong. We have been engaged in foreign trade for more than 10 years. The company has two factories in China and one in Vietnam. We provide various high-standing T5&T6 6000 series aluminum profile for doors&windows, conservatory, cabinet&wardrobe, building material and etc. With professional R&D, OEM/ODM are available. Our monthly output reaches more than 8000 Tons, so our customers come from different countries, such as Thailand, Malaysia, Singapore, Vietnam, Burma and etc.

Moreover, the company has a professional and responsible team to help our customers. All processes are visualized during thr order. Before loading, we have quality inspectors to check the products. After the order, the aftersales staff will ask for feedback. We have always been adhering to the concept that customers are friends and teachers. Every feedback is a opportunity to learn and grow. With the development of these years, Dolphin Co., LTD will be further upgraded and expanded.

Please tell us the information below, and we will give the best suggestion to you!

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.

Welcome to visit our company !

Choose us & contact us !
