Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Dolphin |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | pearl cotton+paper box,6 meters long |
| Delivery Time: | 15-21 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Frame Material: | Aluminum Alloy | Payment Terms: | T/T Or L/C |
|---|---|---|---|
| Appliction: | Doors & Windows | Packaging Details: | EP Paper ,kraft And Pallet |
| Port Of Loading: | ShenZhen Port Of China Or Any Port Under Negotiation | Temper: | T5 |
| High Light: | 6063A Aluminium Casement Door,GB5237.4 Aluminium Casement Door,6063A aluminium frame profile |
||
Product Description

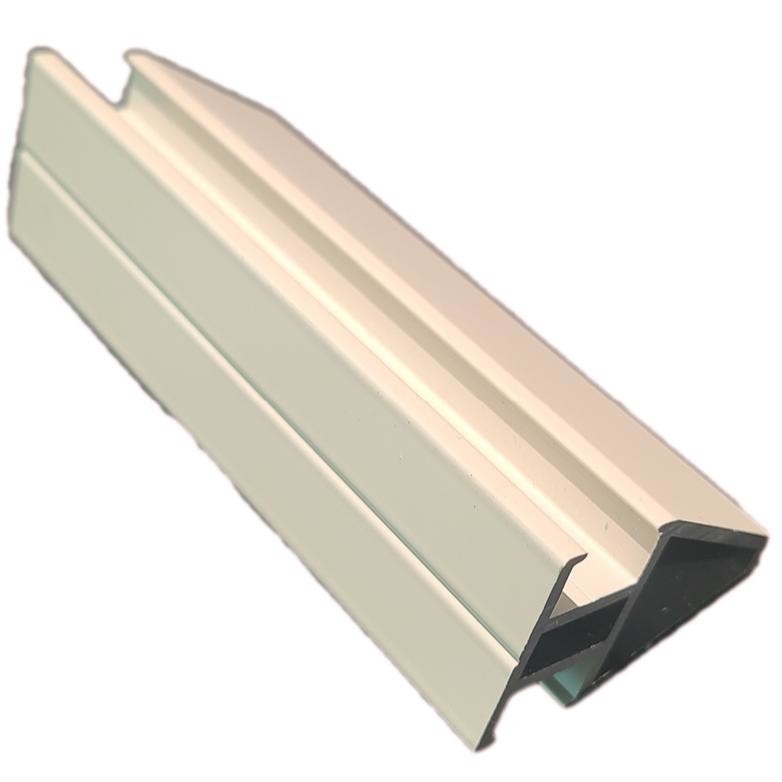

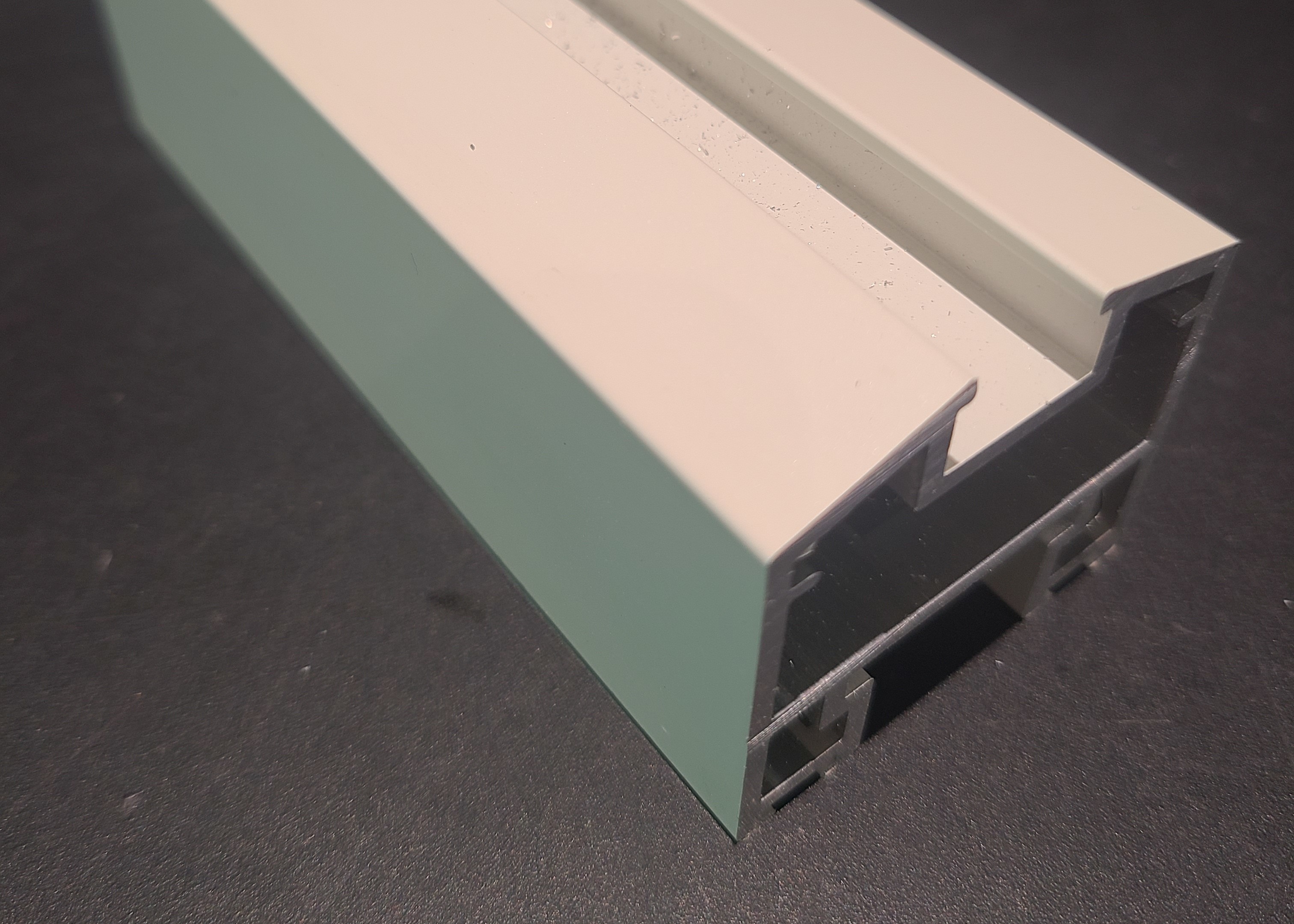

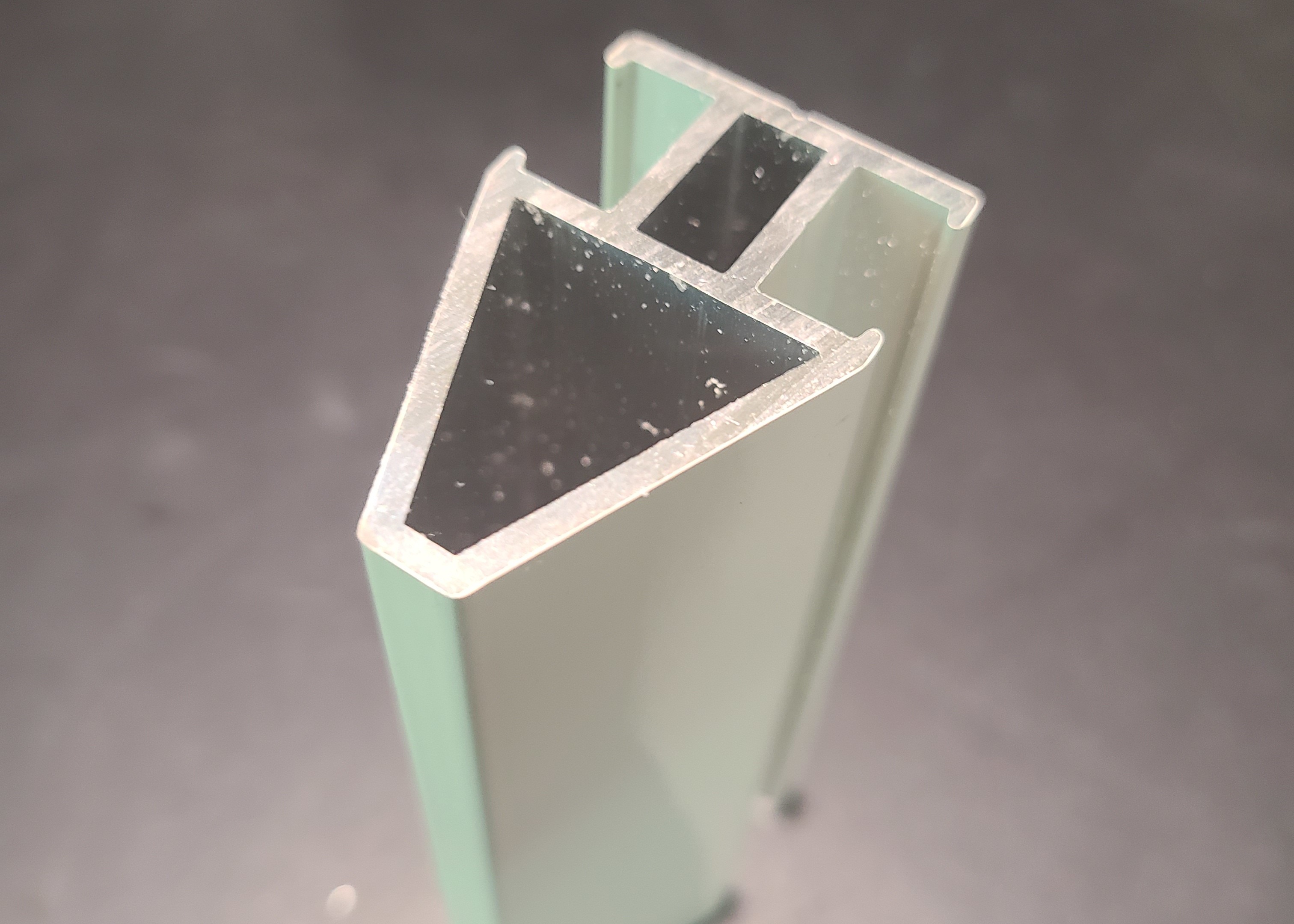

6063 6063A Aluminium Casement Door Profiles Corrosion Resistance
Sliding Windows Aluminium Door Profiles Corrosion Resistance With Good Appearance
Aluminum Profile For Sliding Windows Aluminium Door Profiles To Nigeria
| Product Specification | |
| Description | Aluminum Window Profile |
| Implements National Standard | GB5237.4-2008 |
| Material Thickness(t) | t=1.0 / 1.1/1.2 / 1.4 |
| Material | Aluminum Alloy 6063, 6063A, 6060, 6061 |
| Annealing Treatment | T4, T5, T52, T6, etc. |
| Color | Green, Grey, Black, White, (RAL series)etc. (abt 200 colors) |
| Surface Treatment | Matte, Semi-glossy, Highly glossy |
| Thickness of Powder | 40um ≤ thickness ≤ 120um |
| Length | Normal length = 6 m |
| Package |
1. Pearl cotton foam for each profile; 2. Wrap with shrink film exterior; 3. Packed according to customer request. |
| Advantages/Features |
Providing colorful products with various mechanical performances to adapt all kinds of architectural styles |
Knowledge of aluminum profile
aluminum profile
The meaning of aluminum profile: aluminum extruded aluminum rod is extruded by hot melt.
The following categories can be divided into:
1. Doors and Windows of doors and Windows of doors and Windows of aluminum (divided into doors and Windows and curtain walls).
2. Special radiator aluminum profile for CPU radiator
3. Aluminium profile of aluminum alloy shelf, the difference is the shape of the section, but it is produced by hot melt extrusion.
can be divided by alloy into categories: 1024, 2011, 6063, 6061, 6082, 7075, such as aluminum alloy nameplate, six of them are the most common. Different brand difference between all kinds of metal component proportion is different, in addition to the commonly used aluminum doors and Windows, such as 60 series, 70 series, 80 series, 90 series, curtain wall series and so on architectural aluminum, industrial aluminum profiles with no clear model distinguish, most plants are the actual drawing processing according to the customer.
Classification according to surface treatment:
1. Anodized aluminum
2. Electrophoresis coating aluminum
3. Powder spray aluminum
4. Wood grain transfer aluminum
5. Planer aluminum (divided into two kinds of mechanical planer and chemical polishing, which have the highest chemical polishing cost and the most expensive)
Production process of aluminum profile: mainly including melting, extrusion and coloring (including: oxidation, electrophoretic coating, fluorocarbon spraying, powder spraying, wood grain transfer etc.) three processes.
Chemical composition
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 6063 | 0.2~0.6 | 0.45~0.90 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6061 | 0.4~0.8 | 0.80~1.2 | <0.70 | 0.15~0.4 | <0.15 | <0.25 | 0.04~0.35 | <0.15 |
Equipment
| Production lines | 22 |
| Anodizing and electrophoresis | 4 |
| Powder Coating | 2 |
| Wood Grain | 4 |
| Painting | 1 |
| Polishing | 1 |
| Brushing | 1 |
| Supply ability | 6000Tons per month |
